Aquarium Manifold Plumbing Guide

(Control & Distribute Flow Across Multiple Lines)



A clean, serviceable aquarium manifold layout using bulkheads, valves, and a distribution system.



Why Use a Manifold System?



●  Independent control of multiple outputs
●  Clean, organized plumbing layout
●  Easy maintenance with unions and valves
●  Expandable for future equipment

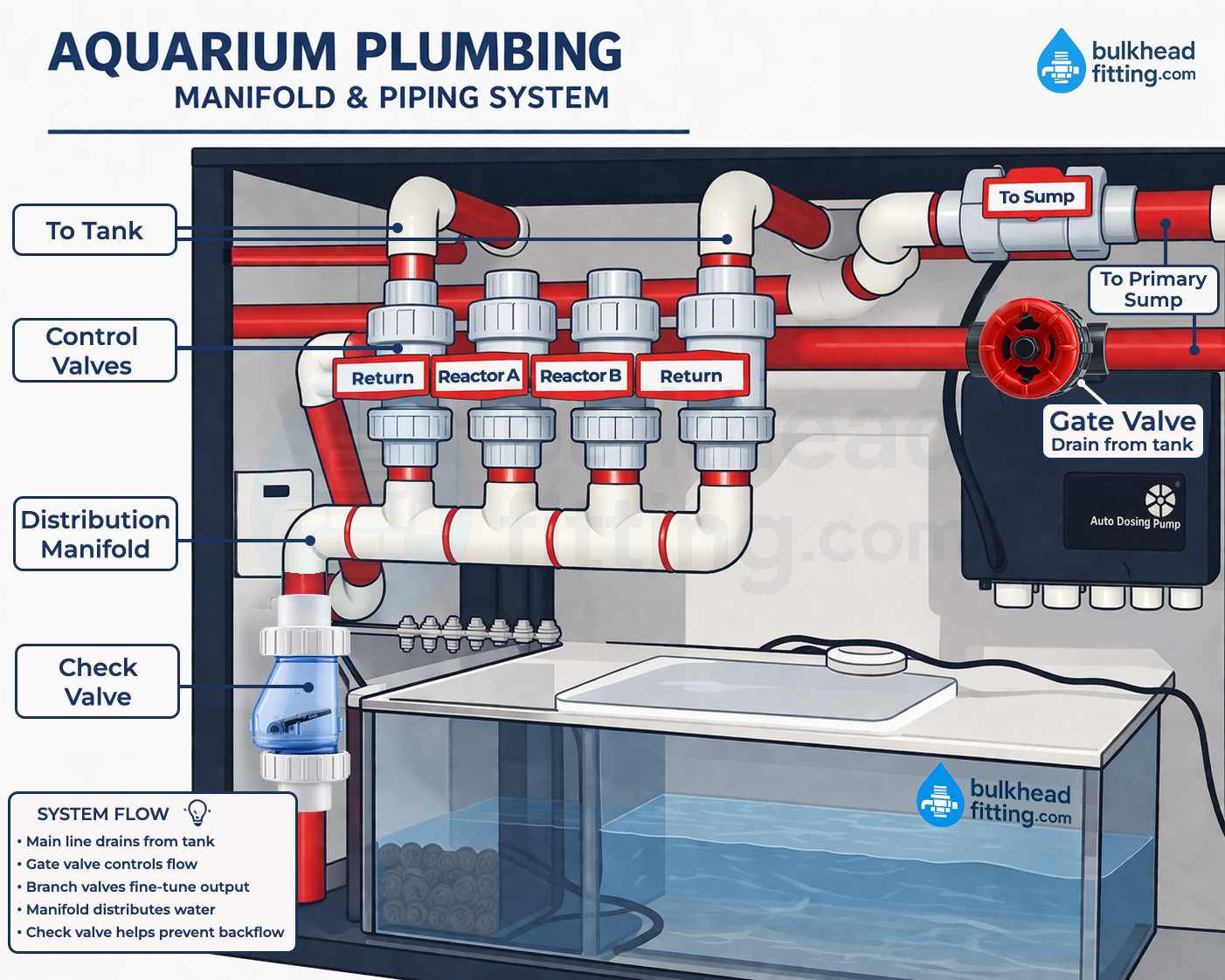

Here’s a simplified example of a clean, serviceable manifold layout



Aquarium manifold plumbing system diagram showing return lines, reactor feeds, gate valve, and sump connection

Choose the Right Bulkhead Style

Bulkhead names are listed from the flange side first, then the nut side. Watch this quick guide before ordering.



Build Your System with These Key Components

!
